Telephone network alarm system

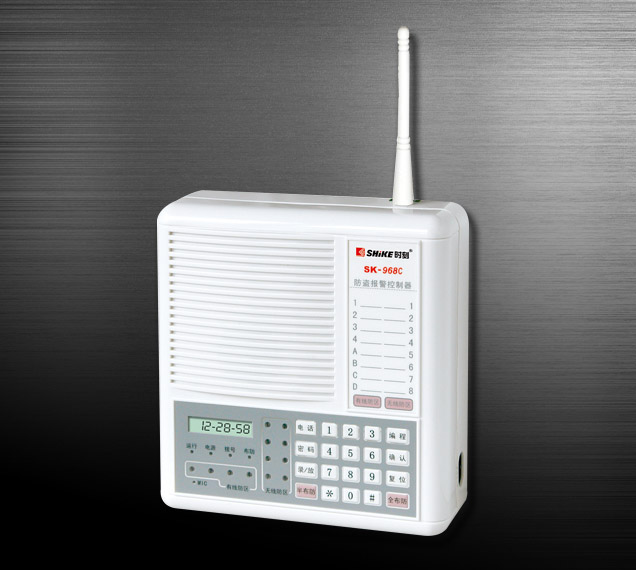

SK-968C Guard Alarm Controller
  • Function Features
  • Technical Reference
  • Schematic Diagram
  • Download
◆ 4 wired +8 wireless zones with microcomputer control , the mainframe features comprehensive functions of burglar proof , fireproof and hold-up alarms
◆ Panel is equipped with integrative programmable keypad , LCD , and memory of 5 groups of alarming telephone numbers

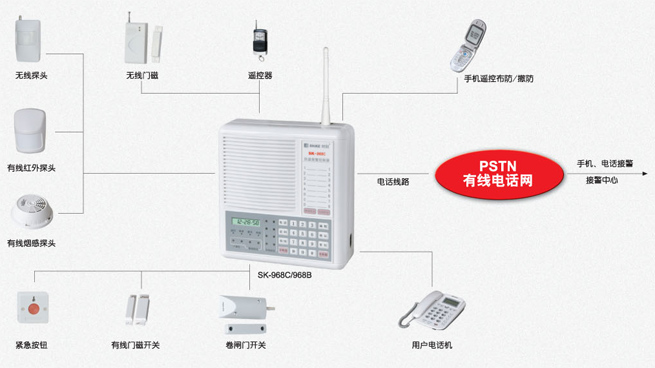

◆ Transmission through telephone line and alarm signal receipt via fixed telephone , mobile phone and manual/networked alarm receiving center
◆ Compatibility with Contract ID ,4+2 and SHIKE communication protocols
◆ Remote control the arming/disarming with remote control unit and telephone
◆ Control the arming/disarming of zones with the Keyboard
◆ Doorbell available for all zones , wired or wireless
◆ Built-in electronic clock makes it possible to arm/disarm different zones in fixed time , set up timer clock and report the self-check status of the mainframe in fixed time
◆ Alternatives of internal connecting and external connecting alarming output , can linked output capable of linking video monitoring
◆ Wireless detector and remote controller (optional rolling code) automatically learn coding
◆ On site alarm for telephone line failure , line breakdown ,unauthorized connection ,and short circuit
◆ Internal 12V maintenance-free rechargeable battery with intelligent charging/disarming control
◆ The panel can set 2 groups of operation password
◆ Auto-reporting of AC power failure , low voltage of battery and detector failure to the central monitoring station
Alarm communications by PSTN dialing Wireless receipt 315M(433M optional)and learning of code checking
Alarm communication protocol Contact ID、4+2 Power supply AC220V±10%、50HZ
Number of zones 4 wired +8 wireless Spare power supply DC 12V 1.3Ah maintenance-free accumulator
Programming mode keyboard Program, remote Program and timer Max output power capacity DC 12V 500mA
Alarm response time 200~800ms Applicable temperature -10~55℃
Memory capability of alarming telephone numbers >5 groups of alarming telephone numbers Applicable humidity <90%
Arming/disarming mode By remote control unit、keypad, regional telephone remote Control, timer Installation style Wall-hanging
voice recording 20 second sections(1 record for whole section and 4 for zones) Material of casing Fireproof ABS plastic
Data memory for inquiry 1 record for power-on time,10 for arming/disarming times, and 14 for alarm information Dimensions(L·W·H) 178×62×190mm
Alarm linked output NO/NC、load: 1A 120VAC/24VDC Weight(plus battery) Approx.1.36kg(Approx.1.9kg)
